Types of Ceramic Capacitors and Their Uses
2026-04-27 61

Ceramic capacitors may look small, but they have a big impact on circuit performance. Choosing the right type helps your circuit run reliably and efficiently. In this article let’s discuss about ceramic capacitors, capacitor codes, types, C0G, X7R, X5R, Y5V, applications, selection, and reliability.

Catalog

What are Ceramic Capacitors?

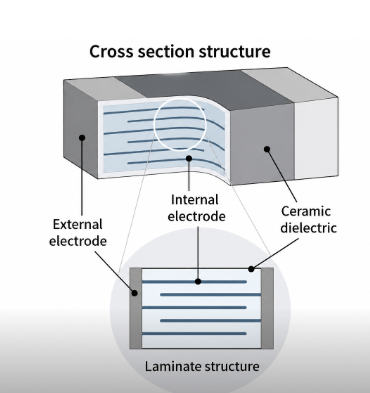

Ceramic capacitors are widely used for filtering, coupling, decoupling, and energy storage. Most modern designs use MLCCs (Multilayer Ceramic Capacitors), which stack alternating ceramic and metal layers to achieve high capacitance in very small packages.

The main factor that defines performance is the dielectric material, as it directly influences how the capacitor behaves under different conditions. It determines how stable the capacitance remains across temperature changes, how sensitive the component is to applied DC voltage (known as the DC bias effect), how the capacitance gradually changes over time due to aging, and how effectively the capacitor responds across different frequency ranges.

In practice, two capacitors with the same nominal value (e.g., 10 µF) can behave very differently depending on their dielectric.

What the 3-Character Capacitor Code Means?

Many ceramic capacitors use a three-character code:

Letter + Number + Letter

• First letter → minimum temperature

• Number → maximum temperature

• Last letter → capacitance variation

Examples:

• X7R: -55°C to 125°C, ±15%

• X5R: -55°C to 85°C, ±15%

• Y5V: -30°C to 85°C, up to -82%

This mainly applies to Class 2 and Class 3 capacitors.

Types of Ceramic Capacitors

Ceramic capacitors are grouped into three classes based on stability and performance, with each class defined by its dielectric type.

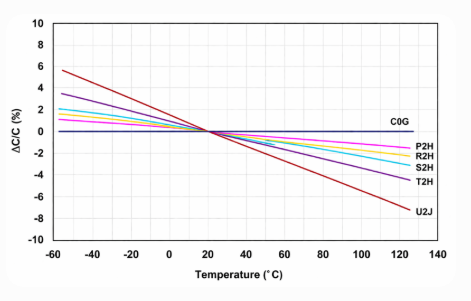

Figure 2.  Capacitance vs Temperature: Stable C0G vs Varying Dielectrics

Class 1: High Stability (C0G / NP0)

C0G (NP0) capacitors provide very stable capacitance with no DC bias effect and no aging.

They offer minimal capacitance change and are ideal for RF circuits, oscillators, and precision analog applications.

If your circuit depends on accuracy or timing, C0G is often the only safe choice. Even though capacitance values are lower and cost is higher, the performance is predictable and reliable.

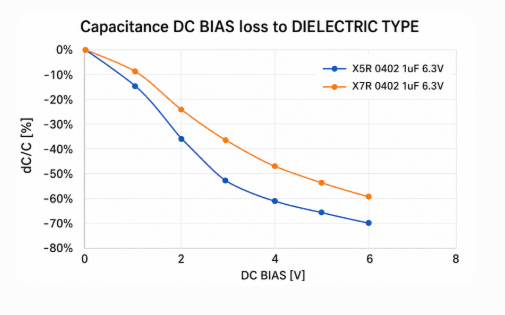

Figure 3. DC Bias Effect Showing Capacitance Loss in X7R and X5R

Class 2: General Purpose (X7R, X5R)

These are the most commonly used capacitors in modern electronics because they offer a good balance between size, cost, and performance.

• X7R (Most Versatile Choice)

Main characteristics include operation up to 125°C, moderate capacitance stability of ±15%, and a noticeable reduction in capacitance under DC bias conditions, along with gradual aging over time.

Typical uses include decoupling and bypassing, supporting stable operation in digital circuits, and general-purpose filtering across a wide range of electronic applications.

In practice, a 100 nF X7R capacitor may only deliver around 60–80 nF when operating under typical voltage and temperature conditions due to capacitance loss caused by DC bias and environmental factors.

• X5R (High Capacitance in Small Size)

Main characteristics include a lower operating temperature range of up to 85°C, higher capacitance density in a compact size, and increased sensitivity to DC bias, which can noticeably reduce effective capacitance under applied voltage.

Typical uses include supporting power rails, providing bulk decoupling, and enabling high capacitance in compact electronic designs where space is limited.

In space-constrained designs, X5R capacitors are commonly used because they offer high capacitance in small packages, but you need to account for capacitance loss under applied voltage to ensure reliable performance.

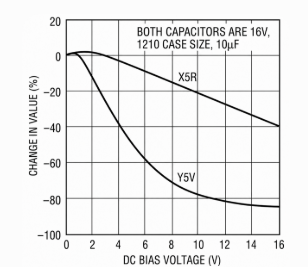

Figure 4. Severe Capacitance Loss in Y5V under DC Bias Compared to X5R

Class 3: Low Stability

This type is best suited for cost-driven designs where performance is not a primary concern.

Main characteristics include very high capacitance per unit volume, extremely poor stability, severe capacitance loss under voltage and temperature variations, and noticeable aging over time.

Typical uses include low-cost applications where performance stability is not important.

An important point to note is that a 10 µF Y5V capacitor can behave like 2 µF or even less under typical operating conditions.

Comparing C0G, X7R, X5R, and Y5V

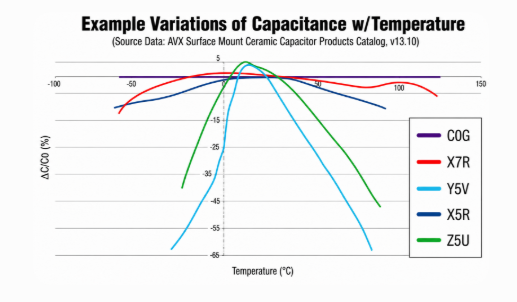

Figure 5.  Capacitance vs Temperature for C0G, X7R, X5R, Y5V, and Z5U

Characteristic	C0G (Class 1)	X7R (Class 2)	X5R (Class 2)	Y5V (Class 3)
Stability	Excellent	Moderate (±15%)	Moderate (±15%)	Very poor
DC Bias Effect	None	Moderate loss	Moderate loss	Severe loss
Aging	None	Gradual	Faster	Noticeable
Frequency Performance	Excellent	Moderate	Moderate	Poor
Best Use	Precision circuits	General decoupling	Compact power / bulk	Low-cost only

Layered Decoupling for Power Integrity

Effective decoupling uses multiple capacitor types together, as each dielectric performs best over a different frequency range. A single capacitor cannot cover all frequencies, so a layered approach is required.

Use the following combination:

Frequency Range	Capacitor Type	Typical Value	Placement
High frequency	C0G	10 nF to 100 nF	Closest to IC power pins
Mid frequency	X7R	100 nF to 1 µF	Near the IC
Low frequency	X5R	10 µF or larger	Bulk energy storage (power rail)

This combination improves noise filtering and overall power stability.

Common Application Examples

• Microcontroller decoupling - X7R 100 nF

• RF oscillator or timing circuit - C0G

• Power rail smoothing - X5R 10 µF+

• Low-cost electronic device - Y5V (only if variation is acceptable)

How to Choose the Right Capacitor?

Step 1: Start with your goal

• Precision / timing → C0G

• General-purpose → X7R

• High capacitance in small space → X5R

• Cost-only designs → Y5V

Step 2: Don’t trust nominal capacitance

Capacitance drops under DC bias and temperature.

Always add margin to ensure enough capacitance in operation.

Step 3: Consider long-term stability

• C0G → stable for years

• X7R/X5R → gradual drift

• Y5V → large variation over time

Step 4: Balance size and cost

Smaller packages can lose more effective capacitance under DC bias.

Don’t choose size based on footprint alone.

Step 5: Validate under actual conditions

Test in the actual circuit by evaluating voltage ripple, noise performance, and overall stability. Final performance depends on operating conditions, not just datasheet values.

Reliability and Manufacturing Risks

Even correct designs can fail due to improper handling and assembly. Mechanical stress is a common issue, especially for large MLCCs, which can crack when the PCB bends. Using smaller components or soft-termination capacitors can help reduce this risk.

Batch variation is another concern, especially with X7R and X5R capacitors, as their performance can vary between production lots. It is important to test main components before use to ensure consistency.

Thermal shock can also lead to failure. Rapid temperature changes during soldering or cooling may cause internal cracks. Following proper reflow profiles and controlled heating processes helps prevent this type of damage.

Conclusion

Choosing the right ceramic capacitor improves stability, reduces noise, and ensures reliable performance. Use C0G for precision, X7R for general use, X5R for higher capacitance, and Y5V only when cost is the priority. Always consider DC bias, temperature, aging, and actual operating conditions before making a final choice.
